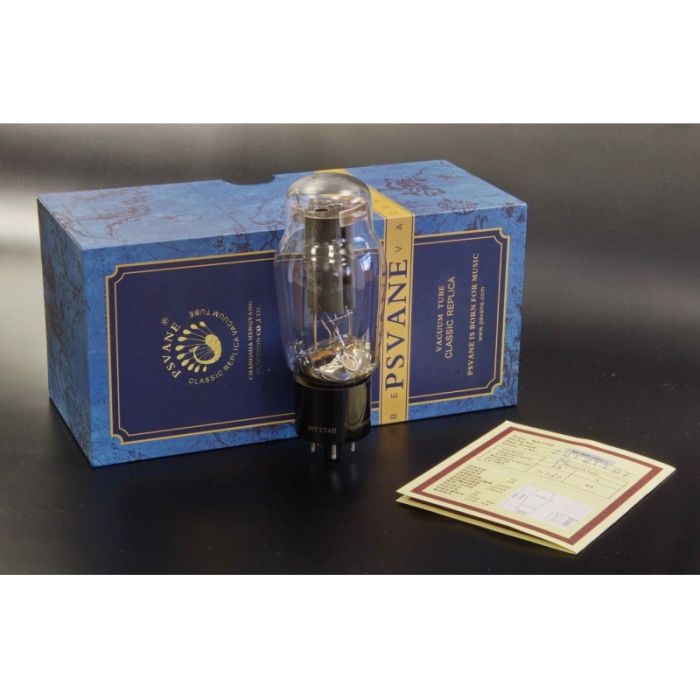

WE274B Psvane WE-Replica Series
Levertijd 3-6 werkdagen
Meer informatie over voorraden en verzending
The PSVANE WE 274B has all the tone and charme of the historic Western Electric 274B and still affords a friction of the cost for the old collectors item.
PSVANE holds the Western Electric construction drawings and formulars of the 1940s and did follow its original requirements in all details.
This includes the accurate selection of materials and components as well as its processing technology and the terms for processing like temperature and humidity.
The result is beyond comparison: the best rectifier tube made today and on par with best of historic made: WE 274B
SPECIFICATIONS
WE274B, directly heated full-wave rectifier，274B is very similar with 5U4G, 5Z4P and 5Z3P, can also replace GZ34 in most applications
Heater
Uf…………………5V
If ………………… 2.5A
Maximum Rating
anode inverse peak voltage 1550V
anode peak current 750mA
Recommend operating condition
Anode supply voltage 2×500V
Each arm impedance 75Ω
load impedance 2000Ω
Filter capacitor 4μF
Rectifier current ≥220mA
dimensions: Maße: d = 53mm max., h = 126mm max., with pins 140mm max.
| Merk | Psvane |
|---|
